TAIFU small water circulation pressure potable hot water recirculation pump

FOB Reference Price:Get Latest Price
US $35-50 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
NINGBO
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TAIFU/PUMPMAN
Model Number:
STAR-C series
Theory:
Centrifugal Pump
Structure:
Circulating pump, Split-Type
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Low Pressure
Application:
Home Booster
Voltage:
110V~240V 50/60Hz
Circulating:
Hot water circulating
Impeller:
GF-PP
Pump body:
Stainless Steeel
Outler Adapter:
Brass or Cast Iron
Motor Wire:
100% Copper
Shaft:
Ceramic
Noise:
< 40db

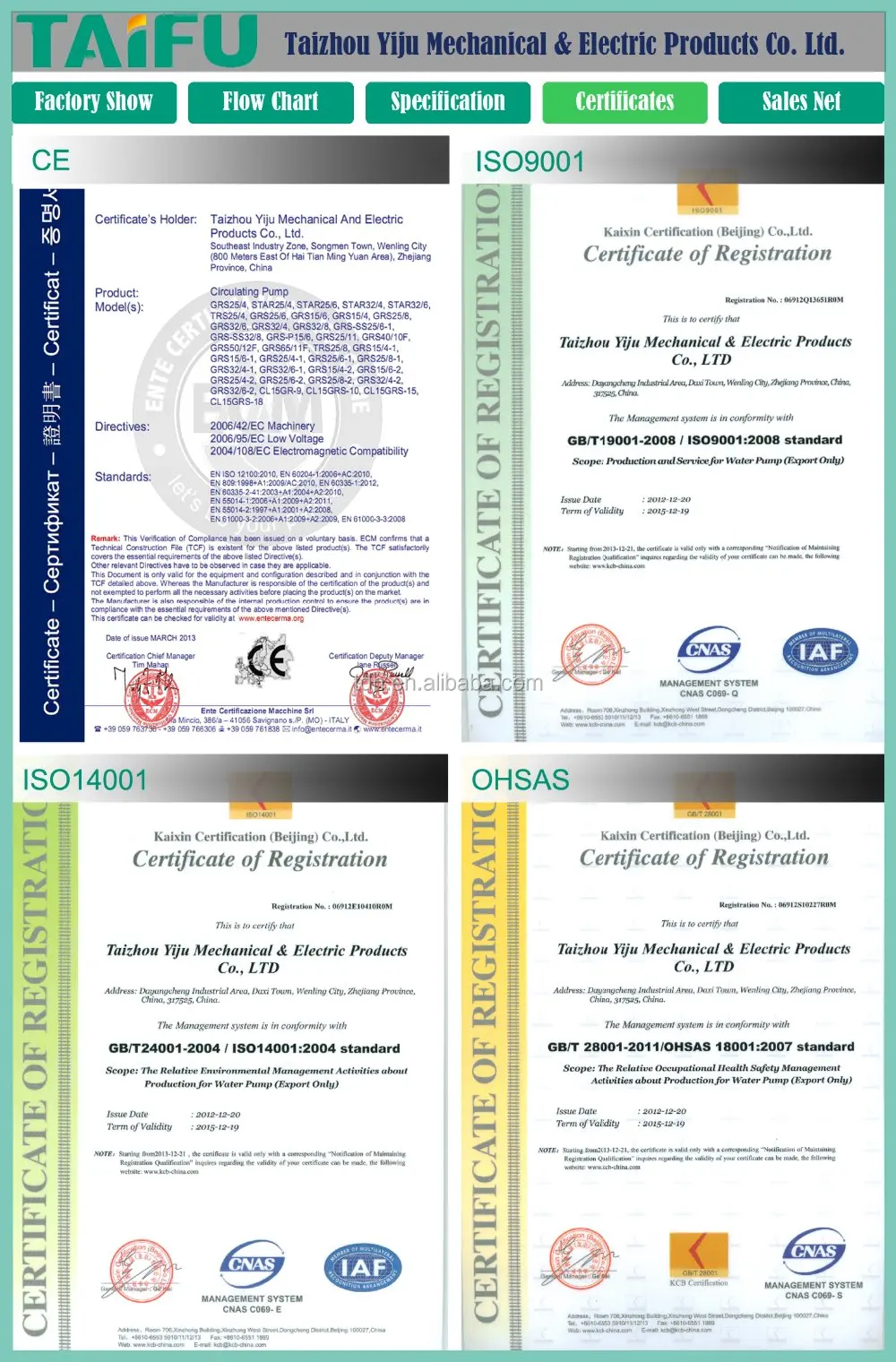

Certificate:
ERP,CE
Packaging & Delivery
Packaging Details
Color box and carton.
43*32*29/8pcs G.W. 27kgs

TAIFU small water circulation pressure potable hot water recirculation pump

TAIFU GRS circulating pumps are designed for circulation of liquid in heating and air-conditioning systems. Pumps with Bronze or Stainless steel housings are also suitable for circulation in hot-water service systems.

1. The application:
1.1. Pumps for heating surfaces
1.2. Heat recovery systems
1.3 . Underfloor heating systems
1.4. Solar heating systems

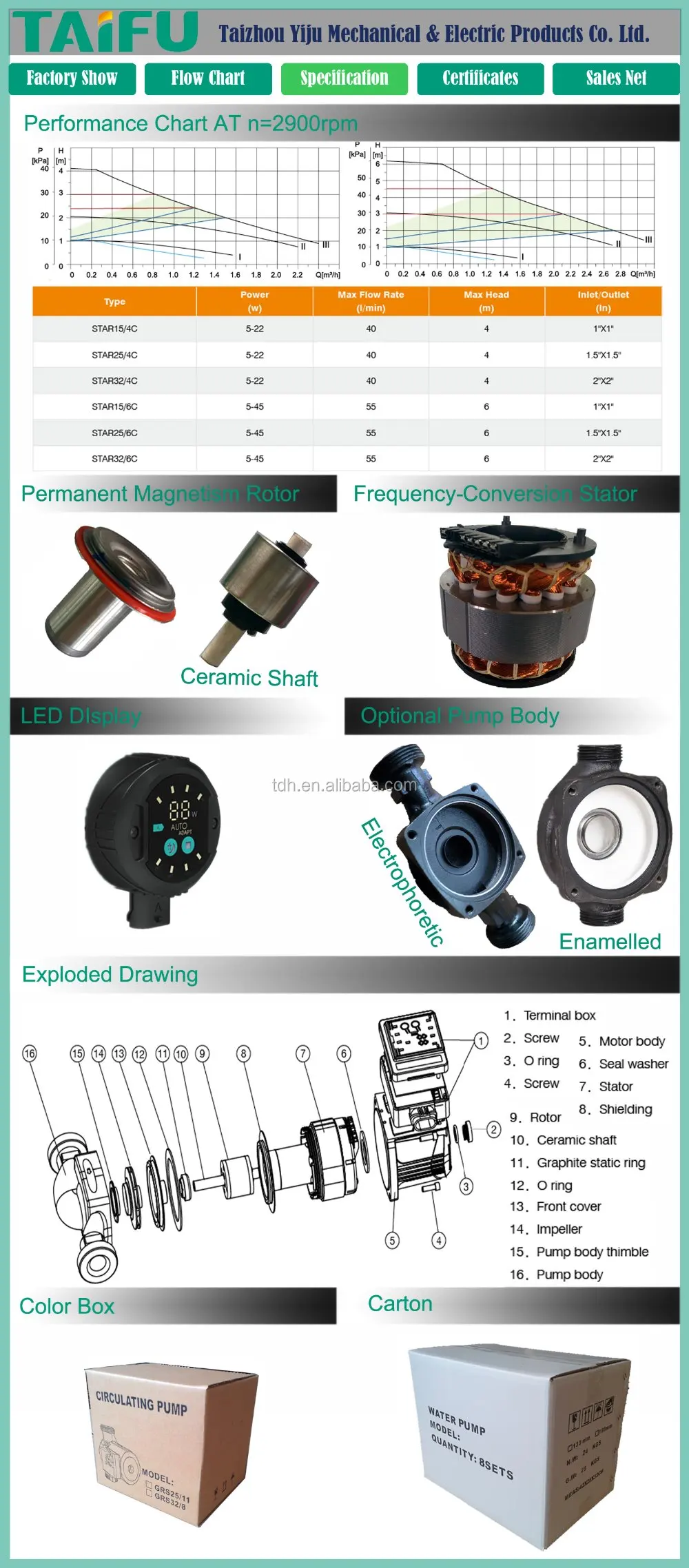

2.The Technical data:
2.1.Fluid temeprature range:-10℃-110℃
2.2.Max.working pressure:6bar for 100W heater pump,10bar for 200W heater pump
2.3.Max Permissible ambient temperature:+40℃

3.Motor data:
3.1.degree of protection:IP54
3.2.Insulating class:F
3.3.Ennegy Class:B
3.4.Pumpbody:130mm or 180mm

4.Material for pumps:
4.1.Ceramic shaft
4.2. impeller:GF-PP
4.3.Pump body:stainless steel material or Cast iron material
4.4.Connectors:brass connectors or cast iron connectors
4.5.100%Copper wire
4.6.Therminal box:LDPE
4.7.Rotor:Stainless steel material
4.8.Shielding:Stainless steel material
